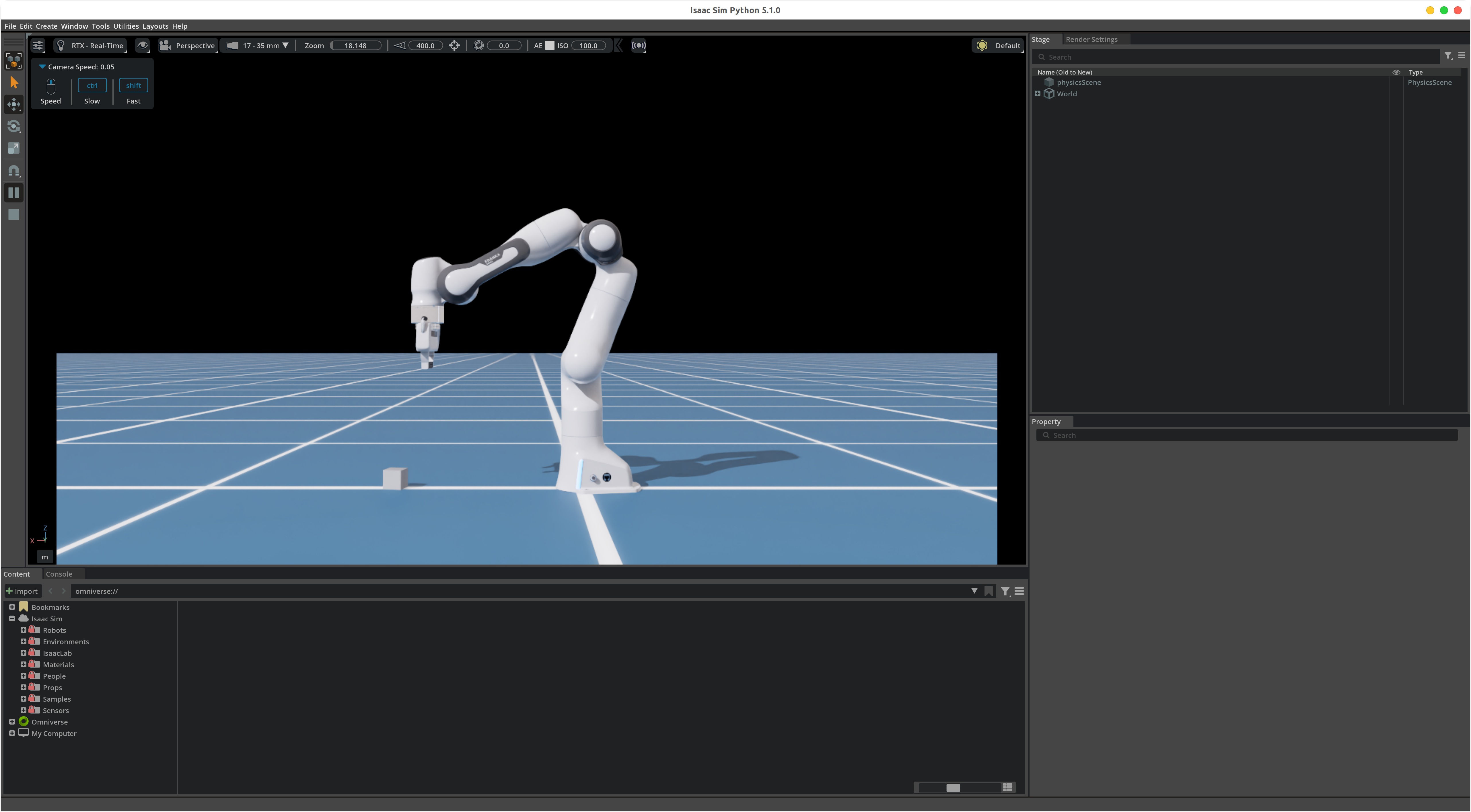

FrankaPanda 的长相

FrankaPanda 的长相

用 Python 代码加载 FrankaPanda

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
from omni.isaac.franka import Franka

world = World(stage_units_in_meters=1.0)
world.scene.add_default_ground_plane()
stage = world.stage

FRANKA_USD = (
    "https://omniverse-content-production.s3-us-west-2.amazonaws.com/"
    "Assets/Isaac/5.1/Isaac/Robots/FrankaRobotics/FrankaPanda/franka.usd"
)

franka_root = stage.DefinePrim("/World/FrankaRoot", "Xform")
franka_prim = stage.DefinePrim("/World/FrankaRoot/Franka", "Xform")
franka_prim.GetReferences().AddReference(FRANKA_USD)
franka_prim.Load()

# 包装为机器人对象
franka_robot = world.scene.add(
    Franka(
        prim_path="/World/FrankaRoot/Franka",
        name="my_franka"
    )
)

FrankaPandas 控制器的代码（非 ROS 2）

1
2
3
4
5
6
7
from omni.isaac.franka.controllers import PickPlaceController

controller = PickPlaceController(
    name="pick_place_controller",
    gripper=franka_robot.gripper,
    robot_articulation=franka_robot
)

FrankaPandas 的基础动作

引入动作模块

1
2
import numpy as np
from omni.isaac.core.utils.types import ArticulationAction

爪子控制

张开动作

1
2
action = franka_robot.gripper.forward(action="open")
franka_robot.apply_action(action)   # 应用动作

闭合爪子 (抓取)

1
2
action = franka_robot.gripper.forward(action="close")
franka_robot.apply_action(action)   # 应用动作
